Inspectable walkthrough
Turn a Visual Document Into Agent-Readable Work Material
One PDF is preserved as original page renders, flat text extraction, and a document map that restores reading order and relationships.
Why Text Extraction Was Not Enough
Meaning in a visual document does not live in words alone. Column order, arrow direction, the table row attached to a callout, and visual hierarchy all carry information. Flat extraction preserves text while collapsing those relationships.
Document Ingester does not try to create one perfect replacement. It separates a fast map for understanding from the original page used for exact verification, then links them.

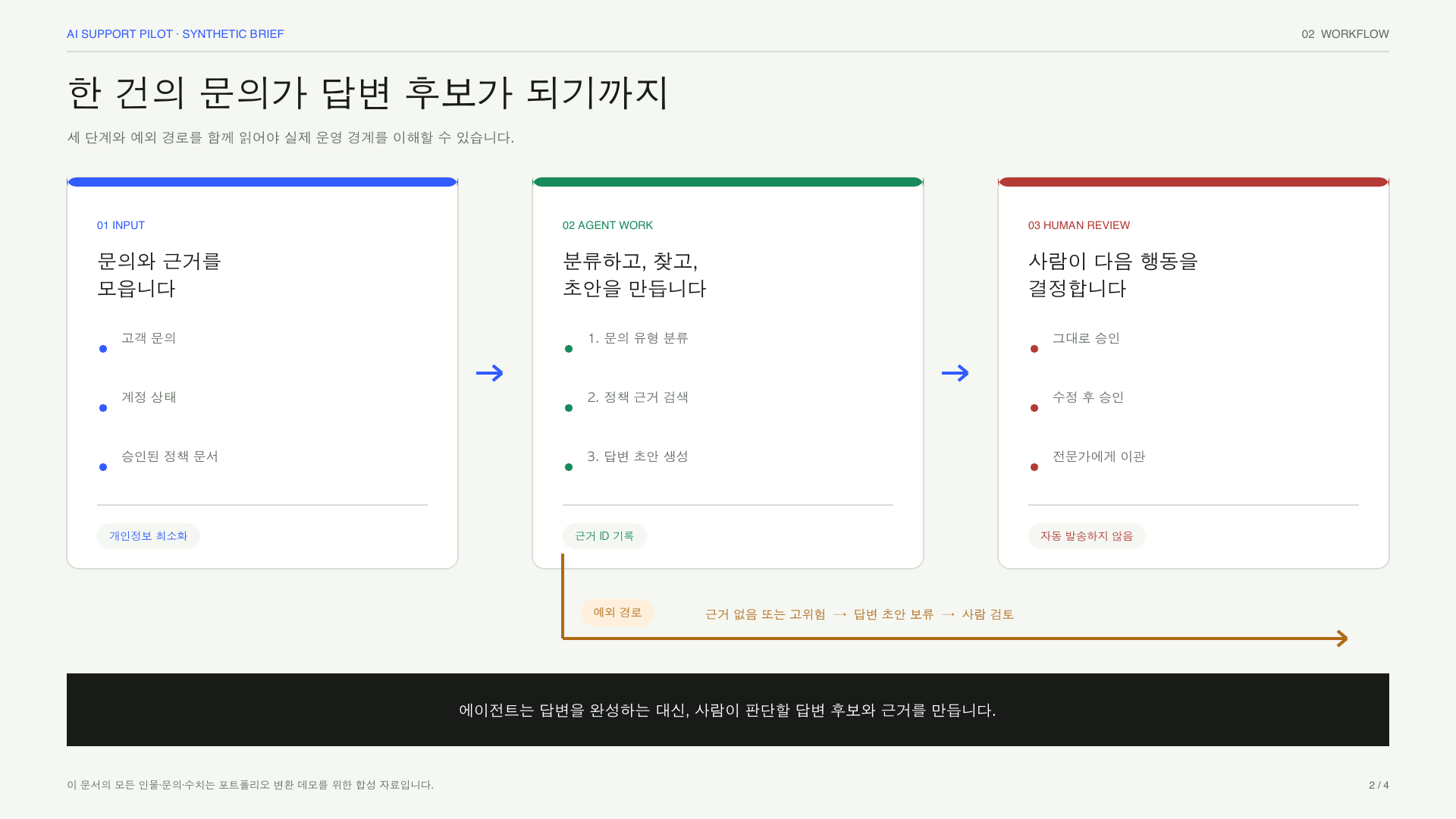

The Source Page
The page shows Input → Agent Work → Human Review, an exception path that bypasses the normal draft flow, and a No auto-send boundary attached to human review.
What Flat Extraction Lost
The text remains:
01 INPUT Collect the request and evidence
02 AGENT WORK Classify, retrieve, and draft
03 HUMAN REVIEW Decide the next action
No evidence or high risk Draft held Human review
No auto-sendThe extraction no longer tells us:
- that the three columns progress left to right
- which bullets belong to each stage
- that the exception path starts in processing and ends in human review
- that
No auto-sendis the operating boundary of the review stage
The Document Map Restores Relationships
The map is not a prettier text export. It states the structure an agent should understand first.
Page 2 · How one request becomes a response candidate
Primary flow
1. INPUT: customer request + account state + approved policy
2. AGENT WORK: classify + retrieve evidence + draft
3. HUMAN REVIEW: approve / revise / escalate
Exception
No evidence or high risk
→ hold response candidate
→ HUMAN REVIEW
Boundary
Never send automaticallyPage text supports search and quotation. The document map supports hierarchy and relationship understanding. The original render remains available for exact wording and visual verification.
How the Three Layers Work Together
| Question | Read first | Verify against |
|---|---|---|
| What decision does the document make? | document map | original pages 1 and 4 |
| Which items belong to a stage? | page note and map | original page |
| What is the exact number or phrase? | extracted text | original render |
| What does an arrow or callout connect? | map | original render |
Demo Boundary

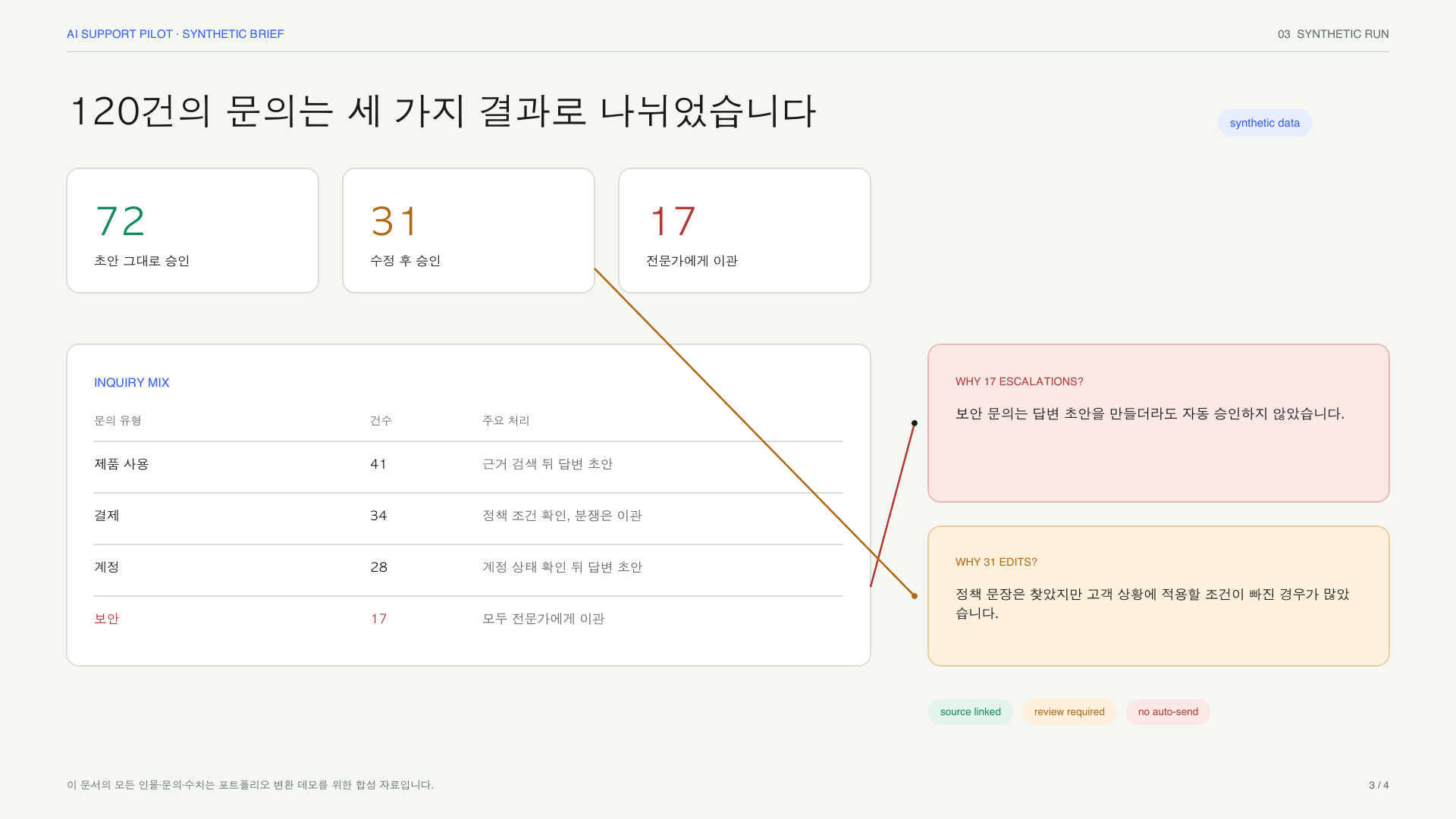

The company, customer requests, and 120 records in the input PDF are synthetic. The actual transformation outputs are the page renders, extracted text, page notes, and document map. This demo does not claim perfect relationship recovery for every PDF.
